Sketch
BP2606CA is a Boost PFC driver with high efficiency, high PF and low THD. The device operates in critical conduction mode and is suitable for Boost power factor correction as a pre-stage of two-stage LED driver.
Advantage

    Critical Conduction Mode Operation

    Ultra-Low Operating Current

    Accurate Internal Reference Voltage

    Integrated 500V Power MOSFET

    Load Open Protection

    MOSFET Over Current Limit

    VCC Under Voltage Protection

    Available in SOP-8 Package

Application area
  • Boost PFC pre-converter

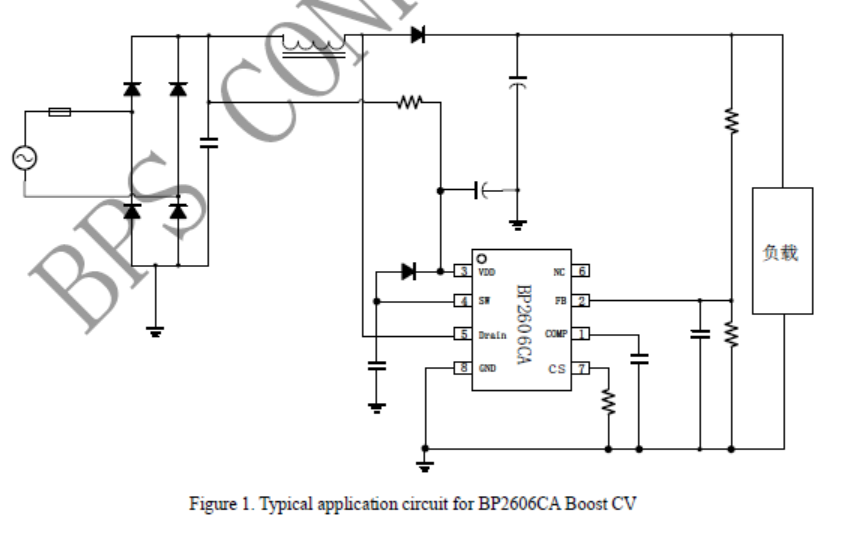

Schematic diagram
德赢·(VWIN)官方网站-AC米兰官方相助同伴
Technical documents
Document type Title Type Download
